SPECIFICATIONS

3D Technology: support 3D function DLP-LINK shutter 3D glasses

Aspect Ratio: 16:9

Build in battery: Y ( 2-3 hours)

Color: black/gold (custom)

Input Terminal: HD-MI*1/USB*1

Physical Resolution: 1080P

Power Supply: 19V/3.42A DC IN

Projection size: 30-200 inches

Projector type: DLP

Speaker: 10W*2 (super bass surround sound)

Throw Ratio: 1.2:1

Total Power Consumption: 25W (max)

Unit Size: 146*128*130mm

ansi lumens: 400 lumens

application: Outdoor

brand name: EASUNTECH

contrast ratio: 1000:1

feature: 3D ready,3D Built-In,Internet Ready,Internet Built-In,Built-In Speakers,SDK available,HIFI STEREO

lamp: LED 50,000 hours

lens: multilayer coated blue ray glass lens

maximum support resolution: 4 K

model number: YY-M2

operating language: English

operation system: Android 9

place of origin: Guangdong, China

portable: Yes

projection distance: 1-6m

ram: 2g

storage: 32 GB

warranty(year): 2-Year

weight: 1.11kg

Brand Story

* During 2000-2007, our founder Mr. Zhang was working for the company of international famous brand in projector industry. He had been engaged in the industrialization of projector technology research and application for 8 years. In 2008, he invested a factory with his friend. In 2012, he founded Shenzhen EASUNTECH brand and made Brand Slogan as "let every family afford and enjoy high-end private cinema". * Culture Concept: integrate "Outstanding supplier, Outstanding manufacturing, Outstanding customer" to create the first-class industrial chain. Develop "Outstanding team, Outstanding quality, Outstanding service" to create maximum value for the customers. * Development Concept: leading R&D technology, competitive efficiency advantage, branding value first, one-stop comprehensive solution, good faith management, 24-hour quick service. * Enterprise Tenet: quality for survival, credit for development, branding for value. * Enterprise Mission: insist on making good branding products that "move people's hearts, are priced kindly and value benefits people". * Enterprise Vision: innovate valuable national brand, build smart home theater ecosystem that integrates "terminal + content + platform + software".

PRODUCT DETAIL

How does our projector solve problems of consumers' use?

Outdoor&Home Main Application and Camping&Entertainment Enthusiast

1. The four corners of the screen are clear and there is no out-of-focus.
2. Optional Google TV can provide an enhanced online TV viewing experience except Android system.
3. Inbuilt 3D function DLP-LINK shutter 3D glasses can enjoy stereoscopic vision at home instead of going to cinema.
4. The WiFi LAN on the wireless same screen + outdoor no network hotspot on the wireless same screen can easily connect to smartphone.

5. The connection with mouse and keyboard can increase the experience when do professional use.
6. Portable size, hand carry design and inbuilt 15000mAh/55.5Wh lithium battery supports convenient use for everywhere or outdoor.

7. There are some auto functions to make it easy using without many operations such as auto laser focus and automatic trapezoidal keystone correction.
8. 9-point touch navigation buttons make the control or operation of the machine easily.

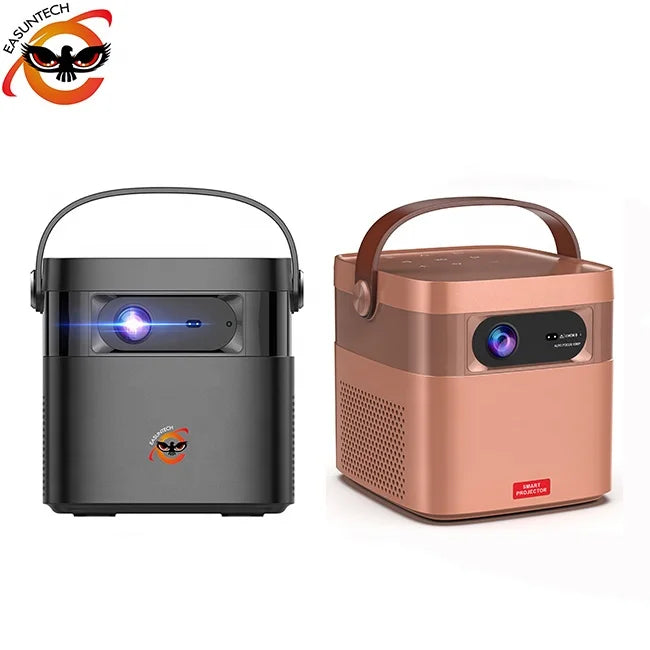

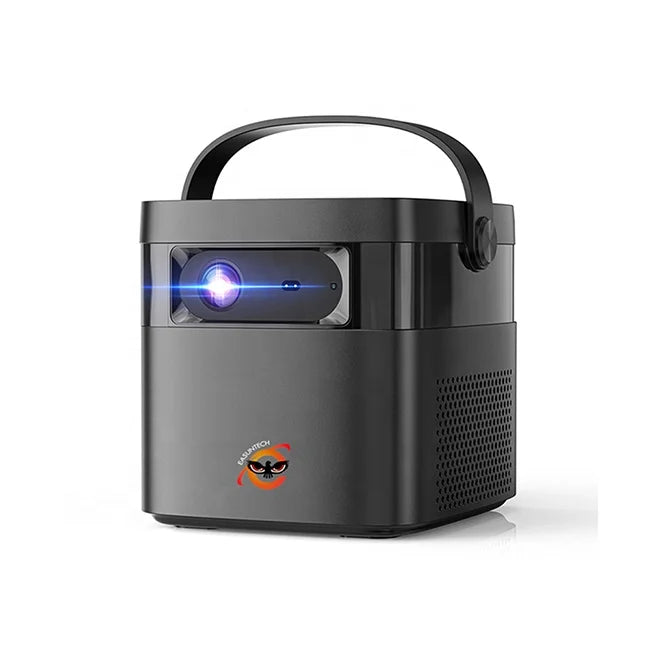

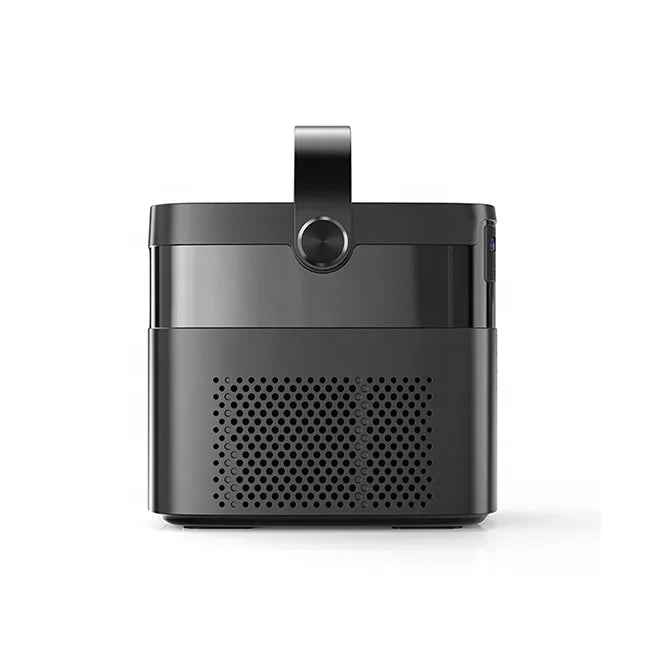

Model NO.	YY-M2

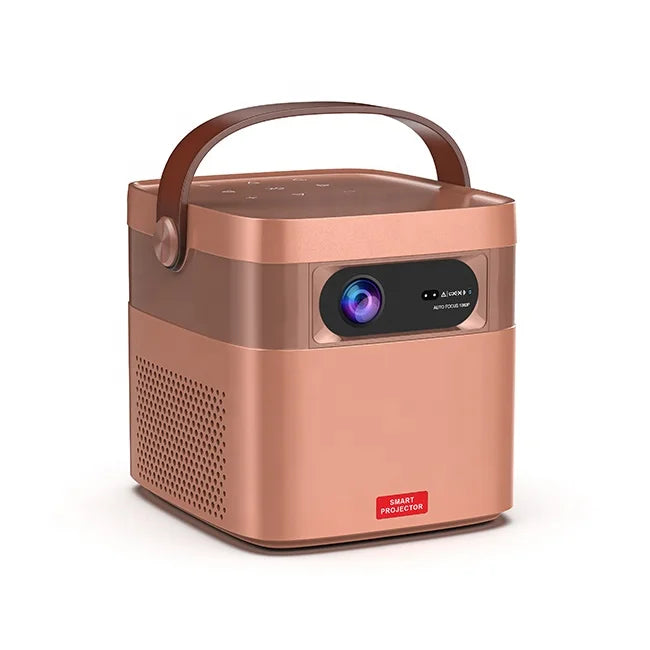

Color	black/gold (custom)
Description	battery projector
Projector Technology	Texas Instruments Ti DLP technology
Display Chip	Ti 0.23 inch DMD (with off-axis 100% optical machine)
Type Of Light Source	Osram RGB-LED light
Projection Brightness	400 ANSI lumens
Physical Resolution	1920*1080 pixels
Image Quality Uniformity	>90%
Contrast FOFO	1000:1
3D Technology	support 3D function DLP-LINK shutter 3D glasses
Screen Size	30-200 inches
Throw Distance	1-6 meter
Throw Ratio	1.2:1
Projection Frame	38“ @ 1 meter
Projection Size Calculation Method	projection ratio (1.2) * projection size (100 inches) * 16:9 screen length (0.0254*0.8716)
Screen Width Ratio	16:9
Keystone Correction	automatic trapezoidal correction ±30°, support manual side casting function
Projection Method	support front projection, rear projection, and hanging projection
Focusing Method	TOF laser focus
Built-In Speaker	10W*2 (super bass surround sound)
Fuselage Material	ABS+PC,+body lens adopts closed optical design, to ensure that the lens will not be scratched for 10 years

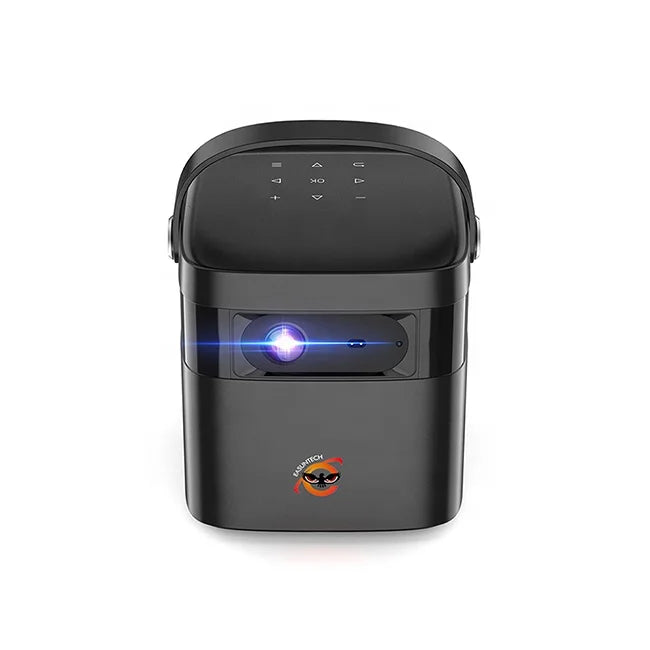

Touch The Fuselage	support for 9-point touch navigation control
CPU	MTK Decode 4K H265/AVS2 4K*2K/30HZ
Clock Speed	64-bit CPU: Contex A53 4-core GPU: Mali-G31
Cache	2GB DDR3
ROM	32GB eMMC
Operating System	AOSP Android 9.0+optional Google TV
Blue-tooth	BT 5.0 (can be connected to an external Blue-tooth mouse, Blue-tooth speaker, mouse, gamepad)
WiFi	2.4G+5G dual-band
Remote Control	standard Blue-tooth remote control, support for external USB 2.4G wireless remote control, Blue-tooth remote control mouse
Power Input Parameter	19V/3.42A DC
Input Support	U disk, mobile hard disk, mouse, keyboard access, computer, set-top box
Wireless Same Screen	support WiFi LAN on the same screen + outdoor no network hotspot on the same screen
Wired Same Screen	n/a
Extended Memory	support U disk and SSD solid state drive

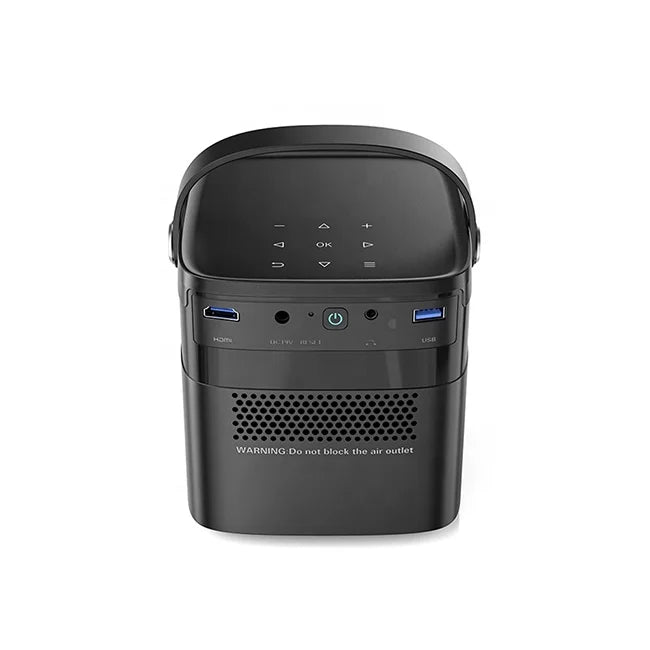

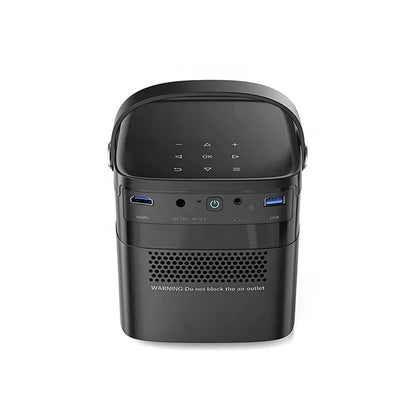

USB Input	USB HOST 2.0*1
TF Card Input	n/a
AV Input	n/a
HD-MI Input	support HD-MI 2.0 input
Type-C Input	n/a
Ethernet Input	n/a
S/PDIF	n/a
Headphone Output	audio output, 3.5mm connector (headphones or speakers can be connected)
Total Power Consumption	25W
Built-In Battery	built-in 15000mAh lithium battery 55.5Wh
Power Performance	power adapter 19V/3.42A DC IN
Battery Life	120 minutes in highlight mode, 140 minutes in standard mode, 170 minutes in power saving mode
Charging Time	fully charged in about 3hours (can be used while charging)
Regular Accessory	M2, remote control, power adapter, power cord, product instruction card
Product Size	146*128*130mm
Net Weight	1.11kg
Package Size	195*223*155mm
Package Weight	1.97kg
Carton Size	59.3*26.3*51cm/9pcs
Package Weight	18.78kg/9pcs
Certificate	ISO/CCC/FCC/CE-EMC/CE-LVD/ROHS/PSE/HD-MI/MSDS

SELLING POINT

Portable size, hand carry design and inbuilt 15000mAh/55.5Wh lithium battery for outdoor convenient use

Support WiFi LAN (wireless) on the same screen + outdoor no network hotspot (wireless) on the same screen with smartphone

Optional Google TV for home use

ADVANTAGE - WHY CHOOSE US

100K PCS MONTH

12 YEAR FACTORY

8 YEAR OEM ODM

5-PERSON R&D TEAM

DUST FREE WORKSHOP

FACTORY PROFILE

OEM ODM BY EASUNTECH

CUSTOMER CARE

OUR SERVICE

A. Free Sample: Refund the sample fee in bulk order B. Small Order: 1-10pcs order can be accepted C. OEM/ODM Service: Provide Logo / manual instruction / color box / design for product appearance and so on all kinds of OEM/ODM Service D. FOB/DDP Payment Terms: Can book the sea ship, do the customs files, even help you to do customs clearance in your country E. Freight Delivery Way: DHL/FEDEX/UPS/TNT/EMS/ Regional Country Lines and so on F. Drop Shipping: 1pcs drop shipping service G. Repair Serive: We can provide the repairing service for any quality problem H. Marketing Service: All kinds of projector photos or videos I. Survery Service: Do the detailed service of your market

FAQ

Q1 Are you Trading Company or Manufacturer? A1 We are a factory that manufactures electronic items more than 12 years and has 3000 square meters. Q2 Do you have experience to supply for Amazon, Wish and Lazada? A2 Yes, we have lots of experience. Q3 What certificate is your projector approved by? A3 FCC/CE/RoHs/CCC, etc. Q4 Can you provide OEM/ODM service? A4 Yes, we have more than 8 years OEM/ODM service. Q5 Can I get a free sample? A5 We do not provide free sample but we can return the sample fee if your quantity reaches certain amount such as 100pcs. Q6 What is minimum order quantity / MOQ? A6 For OEM order, MOQ ≥ 100pcs by different models. Q7 What is payment method? A7 Payssion, Paypal, Escrow, Western Union, MoneyGram, Credit Card, Bank T/T, Alibaba Trade Assurance, etc. Q8 What is shipping time? A8 For sample order, it takes 3-10 days by DHL/FEDEX/UPS/TNT to all countries; For mass order ,it takes 3-15 days by DHL/FEDEX/UPS/TNT or by Air; it takes 20-45 days by sea. Q9 What is your guarantee? A9 1 year after shipment.
